Flow control valve or flow control valve is used in pneumatic systems to adjust the flow rate of compressed air.
By controlling the flow rate, the speed of the pneumatic cylinder can also be adjusted directly.
A flow control valve regulates and controls the volumetric flow of air in a pneumatic system.
They can often be used to adjust the operating speed of an actuator.
You should not confuse them with pressure regulators. It is true that the relationship between pressure and flow is not necessarily linear.
Using a pressure regulator to control flow can result in wasted energy and possible component damage.
Application of flow control valve
Flow control valves are often used to control the speed of pneumatic actuators. Any process that depends on the controlled flow of air, especially for the quality of the final product, requires the use of a flow control valve with sufficient precision.
?How does the flow control valve work
Flow control valves are vital and essential components of fluid systems and are used to accurately control the flow rate of fluid through the pipeline system.
You will hear more about the use of flow control valves in hydraulic systems.
But they can be used in different settings and systems.
While you may need a flow control valve to control the amount of fluid in the circuit.
You may be wondering how a flow control valve works and what systems they are used in.
Therefore, flow control valves work by using mechanisms to control the flow rate.
One of the most common types of flow control valves is the needle valve, which has a needle piston that allows or restricts fluid flow by adjusting the fluid position.
When the needle valve is partially closed, the space through which the fluid moves becomes smaller.
which leads to a decrease in the flow rate. However, if the opening valve increases the size of the space, more fluid can pass through it.
A ball valve or wing valve is another type of flow control valve and uses a spherical ball with a hole in the center.
Operators can control the flow rate using this type of valve by rotating the ball.
When the ball is rotated to be in line with the pipeline fluid it can flow freely.
But if the ball is rotating perpendicular to the pipeline, the flow is restricted.
What is the main purpose of using flow control valves or flow control valves؟
Adjust the flow rate
One of the main purposes of flow control valves is to allow users to adjust the flow rate of fluids in a particular system.
They are used by operators to increase or decrease the volume of fluid passing through a pipeline by manipulating valve settings.
Prevent excessive current
Flow control valves are also used to help prevent excessive flow.
which is one of its important uses because it can prevent possible damage to equipment or cause system instability.
Thus, by restricting fluid flow, valves can ensure the safe operation of systems while preventing potential hazards or costly damage.
Balancing the current distribution
Another purpose of using the flow control valve is to balance the flow distribution.
This means that in systems that have several outlets or branches
Control valves can be used to ensure accurate balance of fluid distribution.
Adjusting each valve individually allows operators to ensure that each branch receives the amount of flow required to ensure overall system performance and performance.
?Where are flow control valves used
Now that we have discussed in detail how flow control valves work and understand the main purposes of flow control valves, here are some applications of flow control valves and how they are used.
- Industrial applications

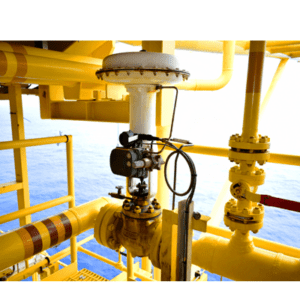

Flow control valves are widely used in a wide variety of industrial systems, especially in the oil and gas industry
In this section, pipelines, offshore platforms and refineries are used to regulate the flow of various fluids, including crude oil and natural gas.
They are used in these industries to ensure the safe and efficient processing, distribution and transportation of liquids and gases.
- Water management systems
Another example of where fluid control valves are used is in water management systems that control the flow of water in sewage treatment plants, dams and irrigation networks.
These valves play an important role in maintaining the optimal water level and ensuring effective water distribution and flood prevention.
As we discussed above, flow control valves are essential devices in fluid systems that provide a way for operators to precisely control the flow in a system.
