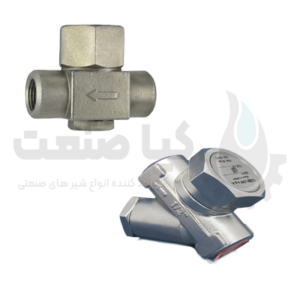

TD steam trap is a type of thermodynamic steam trap and is one of the vital components in steam systems that are used to remove liquefied steam (condensate) and non-condensable gases from the steam system.
TD steam trap performance
TD steam traps operate based on the difference in temperature and pressure between steam and condensate.
These traps have a disc that moves up with the increase in temperature and steam pressure and closes the exit path of condensate.
When the vapor liquefies and the temperature and pressure decrease, the disc returns to its original position and the condensate and non-condensable gases are discharged.
Types of TD steam traps
- Standard disk steam trap: These types of steam traps are mostly used in steam systems with constant pressure and temperature.
Disc vapor trap with special design: these types of traps are designed for special and different conditions such as high pressures, variable temperatures and harsh environmental conditions.
Disc traps with improved features: Some TD traps have features such as greater resistance to corrosion and erosion, longer life and higher efficiency.
Advantages and disadvantages of TD vapor trap
Advantages:
- Simple and small volume: The simple design and small volume of these steam traps make installation and maintenance easy.
Reliable performance: these traps work automatically without the need for constant adjustments.
High efficiency in draining condensate: TD steam traps quickly drain condensate and prevent its accumulation.
Low maintenance cost: It requires less maintenance than other types of steam traps.
Disadvantages:
Important points in choosing a TD steam trap
- Steam discharge capacity: The trap capacity must correspond to the amount of condensation produced by the steam system.
Operating pressure and temperature: TD steam traps must be able to perform well within the operating pressure and temperature range of the steam system.
Corrosion resistance: It is important to choose vapor traps with corrosion-resistant materials, especially in systems that use low-purity steam.
Environmental conditions: it is necessary to pay attention to the environmental conditions of the place where the steam traps are installed (such as temperature, humidity, and the presence of corrosive substances) for the correct selection.
Operating and maintenance costs: Choosing steam traps with lower maintenance and repair costs will reduce the overall costs of the steam system.
TD steam trap maintenance and repair
Correct and regular maintenance of TD steam trap is very important. Some of the necessary measures include the following:
Periodic Inspection: Regular inspection of traps to ensure proper operation.
Cleaning: cleaning traps from particles and possible contamination.
Functional testing: performing functional tests to ensure the effectiveness of the traps.
Replacement of worn parts: If signs of wear and corrosion are observed, defective parts should be replaced.
TD steam traps are one of the key components in steam systems that play an important role in improving the efficiency and productivity of these systems.
Correct selection, correct installation and regular maintenance of these traps can increase the useful life of the steam system and prevent additional problems and costs.
Considering the technical points and specific conditions of each system, it is possible to ensure the optimal performance of the TD steam trap.
Kiasanat is a supplier of steam traps, TD steam traps of Spirax Sarco, TLV, Miyawaki, Yoshitaki, Gestra, etc. brands.
