Description
A manifold is a device that connects one or more block/isolation valves in a hydraulic system. The valves in a hydraulic system can include ball, needle, relief, and vent valves.
In the case of block and bleed manifolds, the goal is to ensure that upstream fluids do not come into contact with downstream components. This is achieved by isolating the fluid flow in the system.

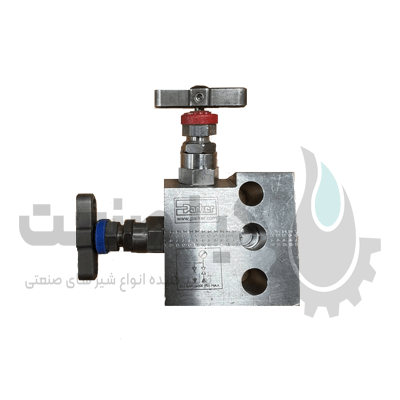

Features of Parker Manifolds:
- T-slot for easy handling
- Packing gland adjuster for wear compensation adjustment
- Valve bonnet with replaceable bonnet seal washer arrangement
- Anti-rotation thrust washer to ensure uniform packing compression, maximizing tight pressure sealing and restricting cold flow paths
- Bonnet/body flushing that guarantees full cavity venting and allows for field staking of caps with 100% resealing assurance
- Dual purpose cap: First, it prevents spool threads from contamination by airborne debris and second, it provides color coded functional identification
- Adjuster gland lock nut that prevents unintentional loosening of the gland adjuster
- Blow-out proof spindle designed for low torque operation with high quality micro-finished stem coating for positive gland sealing
- Gland packing to create maximum sealing with minimum air adjustment
- Spindle tip that positively seals the poppet to assure the user of leak-free performance and downstream functional safety
Benefits of Using Manifold Valves:
- Manifold valves can be useful in many situations, from small machines to heavy industrial plants.
- At the heart of every fluid power system, manifold valves improve efficiency and reduce energy costs.
- Increased energy efficiency with shorter flow paths that minimize pressure and heat loss.
- Reduced installation costs and fluid connections due to a more compact design.
- Reduced oil leakage and maintenance with fewer connections that can fatigue, wear, and loosen.
- Small and compact sizes with cartridge valve design to fit in limited spaces.
- Improved overall design with fewer hoses and fluid connections
Types of Manifold Valves:
- Two-way manifold valves
- Three-way manifold valves
- Five-way manifold valves
Kia Sanat is a supplier of various two-way manifold valves, three-way manifold valves, and five-way manifold valves from the Parker brand.
