Miyawaki thermodynamic steam trap

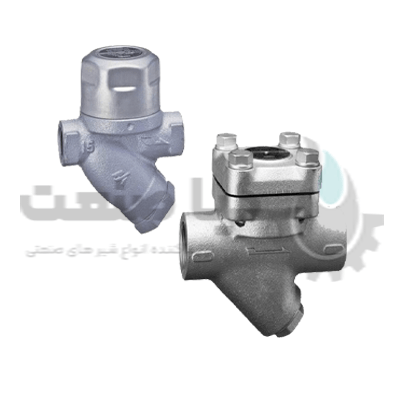

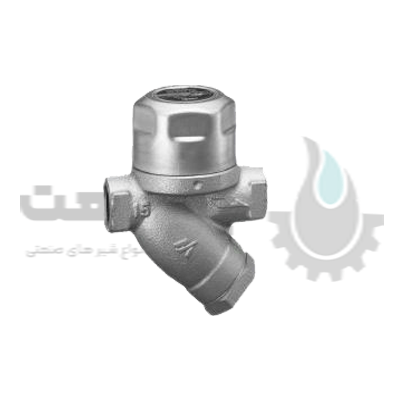

Miyawaki S31N Thermodynamic Steam Trap
The Miyawaki S31N Thermodynamic Steam Trap is a thermodynamic steam trap available in sizes 1″, ½”, 3/4″, 1/2″, 1 1/4″, and 2″.
Features of the Miyawaki S31N Thermodynamic Steam Trap:
- Connection type:NPT, RC, or screwed
- Body material:Ductile iron FCD450 and cast iron FC250
- Weight:7 kilograms to 9.3 kilograms depending on size
- Internal strainer:Yes
Advantages of Miyawaki Steam Traps:
- Immediate condensate discharge:Miyawaki steam traps quickly remove condensate from steam lines and equipment, preventing water hammer and other problems.
- Bimetallic ring:The bimetallic ring in Miyawaki steam traps ensures reliable operation even under fluctuating temperature conditions.
- Easy installation and maintenance:Miyawaki steam traps are easy to install and maintain, with no special tools required.
Applications of the Miyawaki S31N Thermodynamic Steam Trap:
- Steam tracing
- Steam main drips
- Small heat exchangers
- Unit heaters
- Sterilizers
- And many other applications in the petrochemical, chemical, textile, food, pharmaceutical, and other industries.
How Thermodynamic Steam Traps Work:
Thermodynamic steam traps operate based on the Bernoulli principle, which states that the pressure of a fluid decreases as its velocity increases. In a thermodynamic steam trap, the high-velocity steam flows through a specially designed orifice, creating a low-pressure zone that draws condensate into the trap. The condensate then flows out of the trap through a discharge valve.
Benefits of Using Thermodynamic Steam Traps:
- Compact design:Thermodynamic steam traps are compact and lightweight, making them easy to install and maintain.
- Cost-effective:Thermodynamic steam traps are relatively inexpensive to purchase and operate.
- Efficient:Thermodynamic steam traps efficiently remove condensate from steam systems, improving energy efficiency and reducing operating costs.
Kia Sanat is a supplier of various thermodynamic steam traps, thermostatic steam traps, float thermostatic steam traps, bucket steam traps, and more.
