Flowserve pneumatic actuator

Description

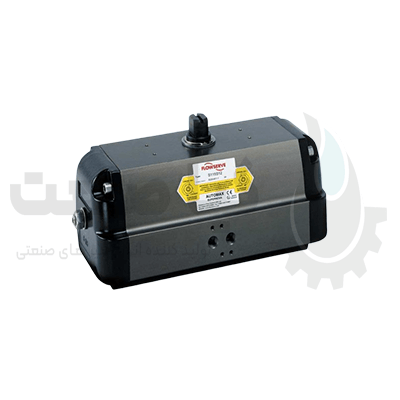

Flowserve pneumatic actuator from Automax series is a pneumatic actuator designed for butterfly valve (butterfly valve), ball valve (ball valve).

This Flusro pneumatic actuator offers a dual action and spring return.

In this Flowserve pneumatic actuator, bearings, 4 springs and 5 stainless steel connections are used to withstand the toughest working conditions.

Feature of Flowserve pneumatic actuator

Ability to travel 100 degrees in two directions

ISO certified for connecting to standard valve controls

The possibility of replacing parts in case of failure

Output torque range: 5005 Nm

The working temperature of this Flowserve pneumatic actuator is from -50°C to 150°C and from -20°C to 80°C.

The body and connections of this pneumatic actuator are ISO 5211.

It can rotate 180 degrees to 250 degrees.

The ports of this Flowserve pneumatic actuator are 1/2G type and have a cap.

Kiasanat is a supplier of all kinds of actuators, Eco air actuators, Samson actuators, Siemens actuators, Masonilan pneumatic actuators, Rotork electric actuators, Alpha Air actuators, etc.

Additional information

  • برند

    Flowserve

  • محدوده دما

    -50 درجه سانتی گراد تا  150 درجه سانتی گراد, -20 درجه سانتی گراد تا 80 درجه سانتی گراد
