Flanged Tee

Description

A flanged tee is a type of pipe fitting that has three openings and flanges at each end for connecting to other pipes or equipment. These fittings are widely used in various industries and piping applications to direct, divert, or mix the flow of liquids, gases, or slurries.

Types of Flanged Tees:

There are two main types of flanged tees:

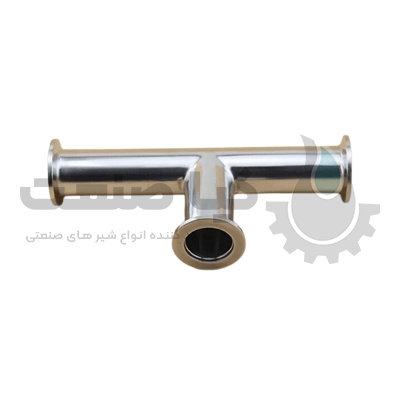

• Tee Type:This type has three branches in the shape of the letter T, with one inlet and two outlets. The flow can be directed to either outlet or both simultaneously.

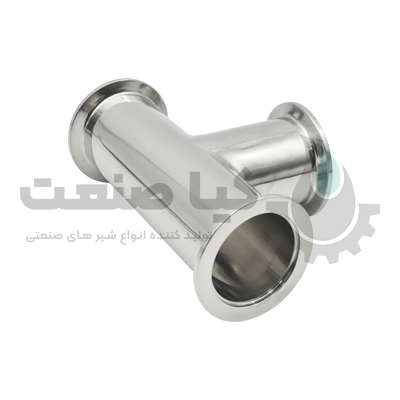

• Lateral Tee:This type has three branches in the shape of the letter L, with one inlet and two outlets. The flow can be directed to either outlet, but not to both simultaneously.

Materials of Flanged Tees:

Flanged tees are made from various materials, including:

• Steel
• Stainless steel
• Cast iron
• Ductile iron
• Plastic

The material chosen depends on the specific application and the pressure, temperature, and corrosive nature of the fluid being handled.

Flange Connections:

The flanges are typically attached to the ends of the pipe using welding, bolting, or threading. The type of flange connection also depends on the specific application and pressure requirements.

Applications of Flanged Tees:

Some common applications for flanged tees include:

• Diverting the flow of fluids in process piping systems
• Mixing two or more fluids together
• Isolating sections of piping for maintenance
• Regulating the flow of fluids in control systems

Factors to Consider When Choosing a Flanged Tee:

When selecting a flanged tee, it is important to consider the following factors:

• The type of fluid being handled
• The pressure and temperature requirements
• The required flow rate
• The desired flow control functionality
• The material compatibility
• The type of flange connection

Kia Sanat is a supplier of various fittings, including flanged tees in steel, cast iron, stainless steel, PVC, and more.
