Description

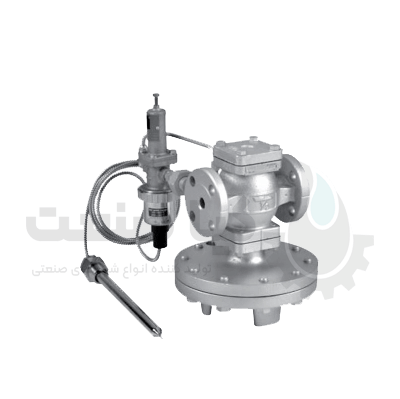

Yoshitake OB-200 pressure regulator is a high capacity regulator. which is used for heating or increasing the temperature.
This Yoshitake pressure regulator is an external bellows type.
It can be ordered in 1/2″ to 4″ sizes.
This Yoshitake pressure regulator is used in applications with steam fluid and a minimum pressure of 2 MPa.
The maximum working temperature of this regulator is 220 degrees Celsius and its temperature adjustment range is from -8 to 15 degrees or 10 to 36 degrees or 30 to 62 degrees or 55 to 94 degrees or 80 to 127 degrees or 115 to 183 degrees Celsius.
The body material of this pressure regulator Yoshitake model OB-200 is made of cast iron and valve and valve Seat is made of stainless steel.
Advantages of pressure regulator Yoshitake model OB-200
Large capacity and precise control
Wide temperature range
Valve leakage according to ANSI Class IV standard
Kiasanat is a supplier of all kinds of pressure regulators, Yoshitake control valves, Yoshitake separators, Yoshitake butterfly valves, etc.
